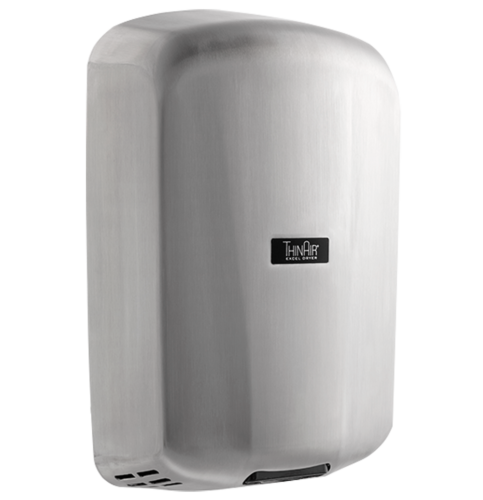

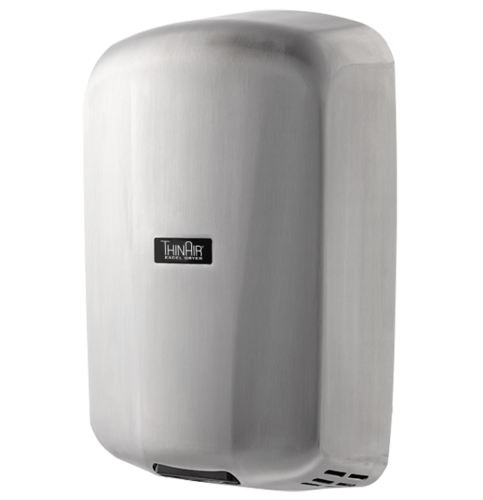

Model TA-SB Stainless

Model TA-SB Stainless

Excel ThinAir TA-SB Stainless Steel Hand Dryer

Model TA-SB Stainless

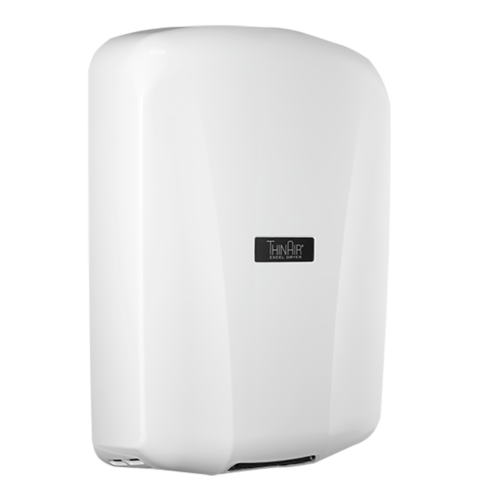

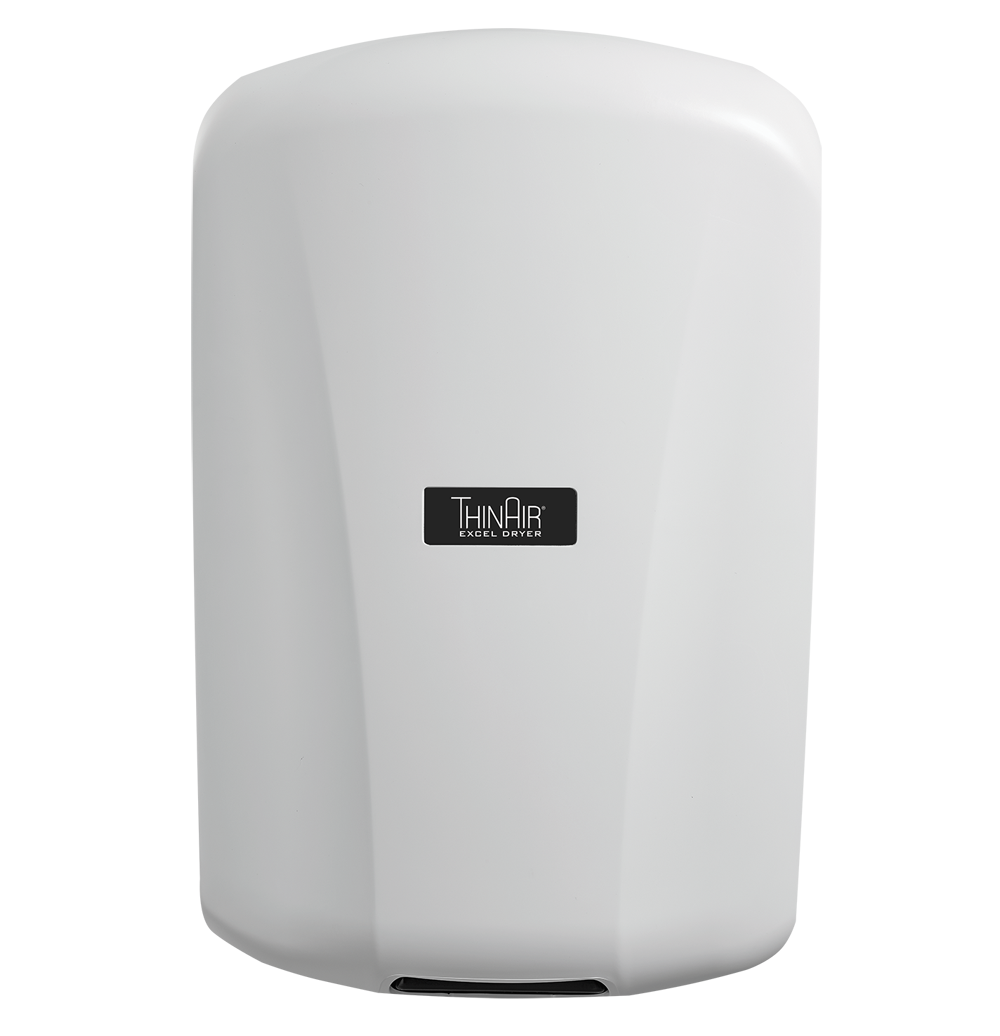

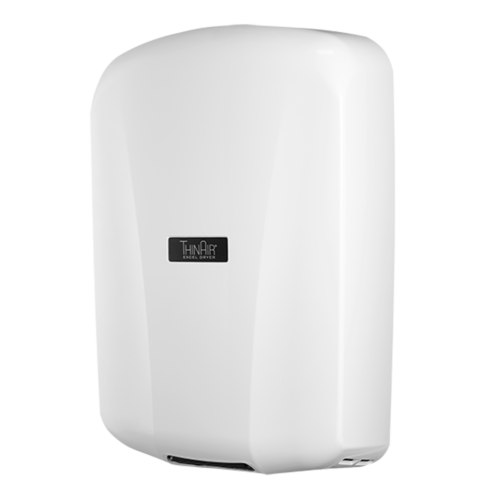

Model TA-ABS White Polymer (ABS)

Model TA-ABS White Polymer (ABS)

Excel ThinAir TA-SB TA-ABS White Hand Dryer

Model TA-ABS White Polymer (ABS)

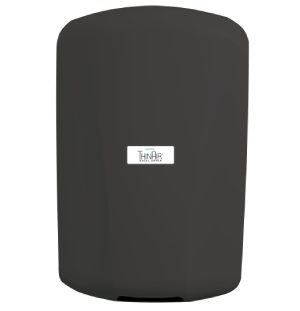

ModelGraphite Textured Painted

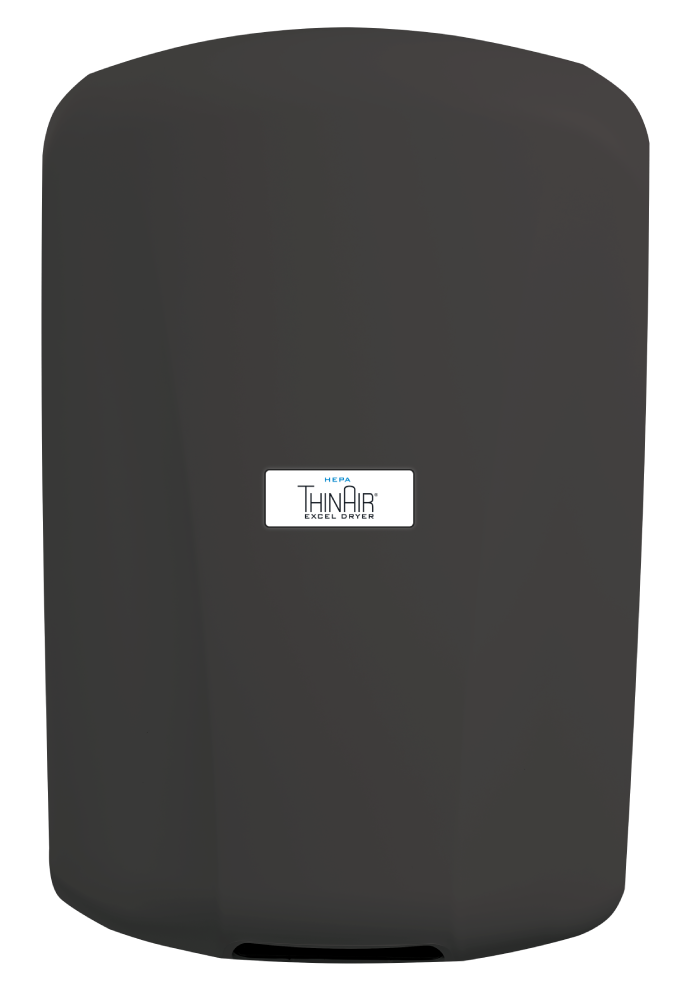

Model Custom Special Paint

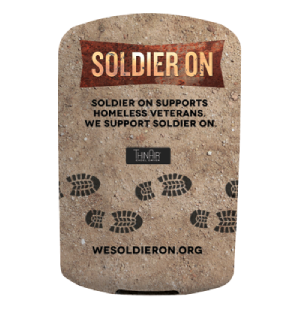

Model Custom Special Image

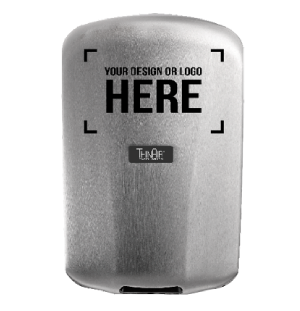

Model Brushed Stainless Steel Special Image

ThinAir^® Hand Dryer

Surface Mounted. ADA Compliant.

95% Cost Saving vs. Paper Towels
Meets 4″ ADA Protrusion Guidelines
5-Year Warranty
Up to 75% Reduction of Carbon Footprint vs. Paper Towels

Request a QuoteWatch ThinAir Case Study Video

Videos

Photos

Certifications

Resources

Features and Benefits

Performance

14 Second Dry Time
Wattage: 950 Watts (Heat On) - 300 Watts (Heat Off)
When surface mounted meets 4" ADA protrusion guidelines to accommodate the visually impaired
Washable Pre-Filter

Savings

80% Less Energy Than Conventional Hand Dryers
95% Cost Savings Vs. Paper Towels
Saves Time, Money and the Environment

Sustainability

No More Maintenance and Upkeep of Paper Towel Waste
Building Green Approved and Helps Qualify for several LEED^® credits
Helps facilities around the world reduce their carbon footprint
All ThinAir^® Hand Dryer Models Are EPD Certified
TA-ABS and TA-SB Models are HPD Certified

Hygiene

A Hygienic Hand Drying Solution
Antimicrobial Wall Guards designed to protect walls from water and inhibit the growth of bacteria

Product Features

Activation: Automatic Sensor Operated
Mounting: Surface Mounted
Dimensions: 9 5/32” W x 13 15/16” H x
3 15/16” D
Weight: 8-10 lbs.
Warranty: 5-Year Limited

Cover Finish: White ABS, Brushed Stainless Steel, White Painted Steel, Graphite Painted Steel, Special Paint Options
Electric Hand Dryer Specifications: 110-120V – 7-7.7 Amps, 770-915 Watts, 50/60 Hz, 208-277V – 3.6 -4.0 Amps, 735-950 Watts, 50/60 Hz, 230V – 3.9 Amps, 890 Watts, 50 Hz

Downloads

3 Part CSI Specification

PDF DOC

Technical Data Sheet

PDF

CAD/BIM Images

ThinAir^® Hand Dryer

2D/3D CAD/BIM

To access CAD/BIM images for our entire line
of hand dryer and accessories please visit our

Spec Tools

Spec Site List

Case Studies

3:49Grand Central Terminal

Transportation

4:40Brooklyn Bowl

Entertainment

2:08Longmeadow High School

Education

1:48Max Burger

Hospitality

United States Green Building Council

Sustainable Design

Gillette Stadium

Stadiums/Arenas

See All Case Studies

Downloads

Go Green, Save Green

See how you can achieve 95% cost savings and 70% carbon footprint reduction by getting rid of paper towels and switching to our high-speed, energy-efficient hand dryers.

Select Your Usage for Sample Cost Savings

LEVEL	USES PER DAY	EXAMPLE
Low	50	Bistro, Small Business Office
Medium	200	Restaurant, Chain Store
High	500	School, Theatre, Conference Center
Heavy Duty	2500	Transportation Center, Stadium
