Hands Off^™ Series

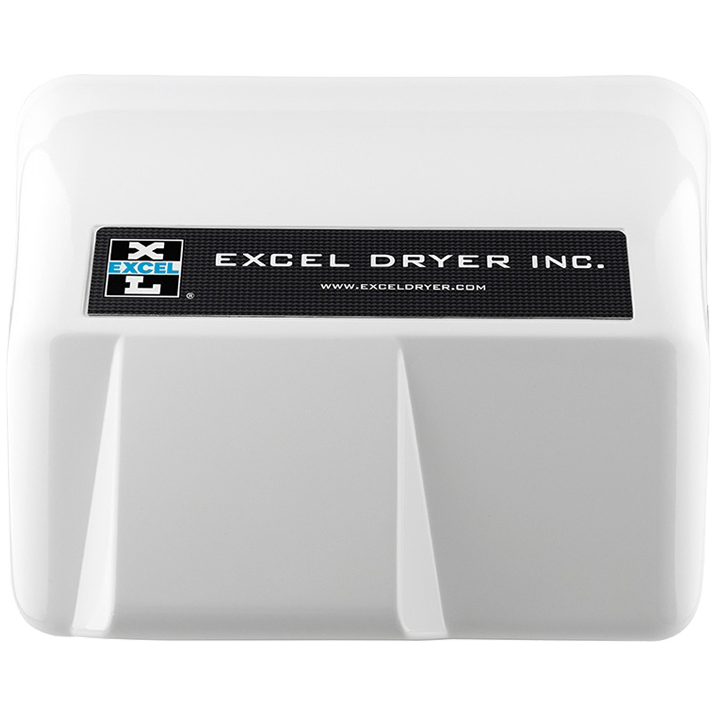

Model HO-IW

Surface Mounted, Automatic White Epoxy Painted Cover

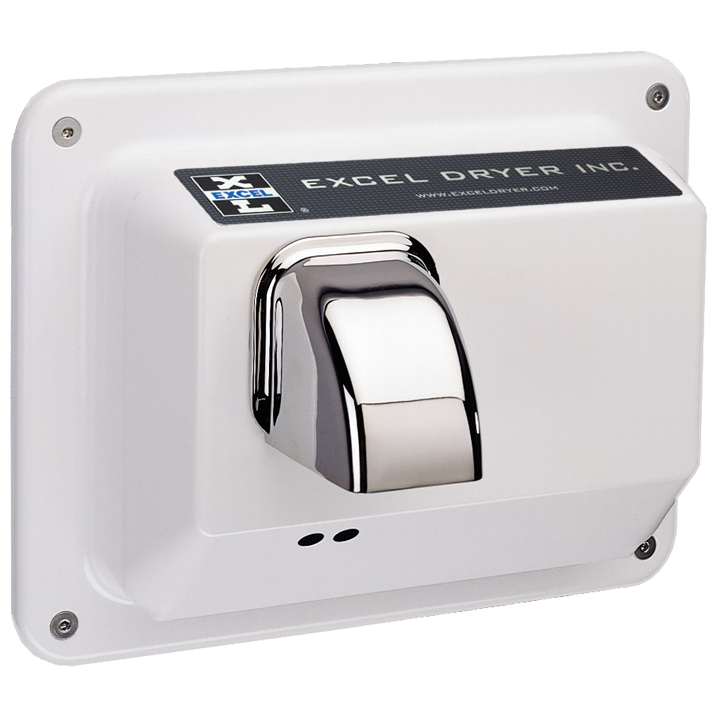

R76-IW

Recessed Mounted, Automatic Epoxy Painted Cover

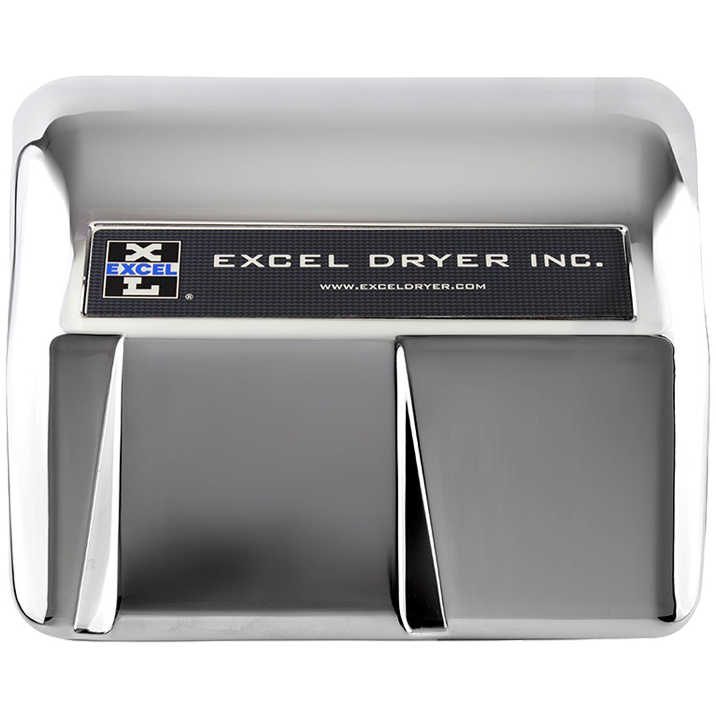

Model HO-IC

Surface Mounted, Automatic Chrome Plated Cover

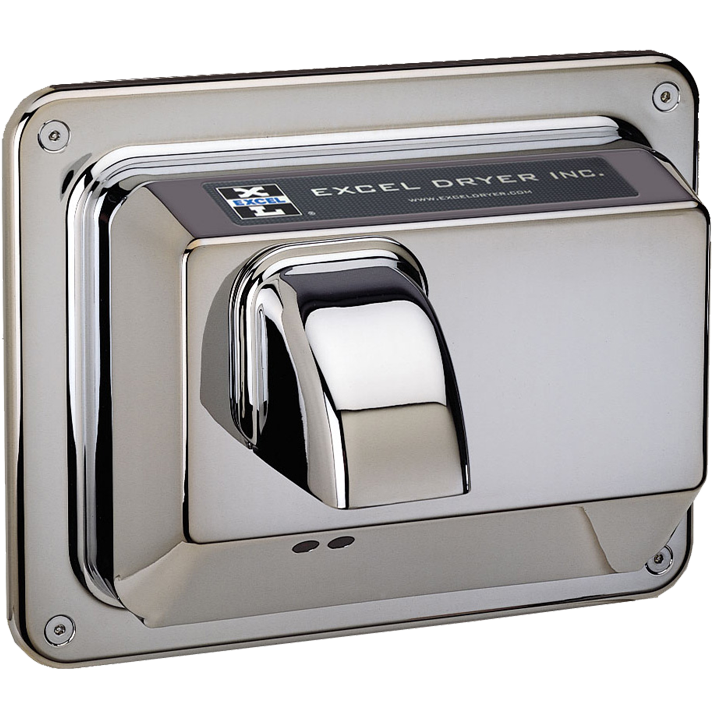

R76-IC

Recessed Mounted, Automatic Chrome Plated Cover

Covers

Request a Quote 3-Part Specification

Automatic Sensor Activated Hand Dryers

Fully Automatic – Dryers are activated
by an infrared sensor
Maintenance-free brushless motor, capacitor initiated for quick starts
Vandal Proof – Features include tamper-proof bolts and a side-mounted heating element inaccessible through the
air outlet

Covers are available in either a white epoxy paint or a chrome-plated finish
Custom colors also are available
10 year limited warranty (5 years on control assembly and sensor)

Certifications

Resources

Specifications

Surface Mounted Dimension: 12″ W x 9 3/4″ H x 8″ D Weight: 16lbs.
Recessed Mounted Dimension:
12 1/2″ W x 9 3/4″ H x 4″ D
Weight: 18lbs.
Warranty: 10-Year Limited (5 years on control assembly and sensor)

Cast Cover Finish: White Epoxy Paint, Chrome Plated
Electric Specifications: 110-120V – 15 or 20 Amps, 60 Hz, 208-230V – 10 Amps, 60 Hz, 277V – 8 Amps, 60 Hz, 220-240V – 10 Amps, 50 Hz

Diagrams

Compliance

Spec Site List
